Description
Breathe Easy On the Go: Philips Portable Compressor Nebulizer Machine Innospire Mini is a quality product!

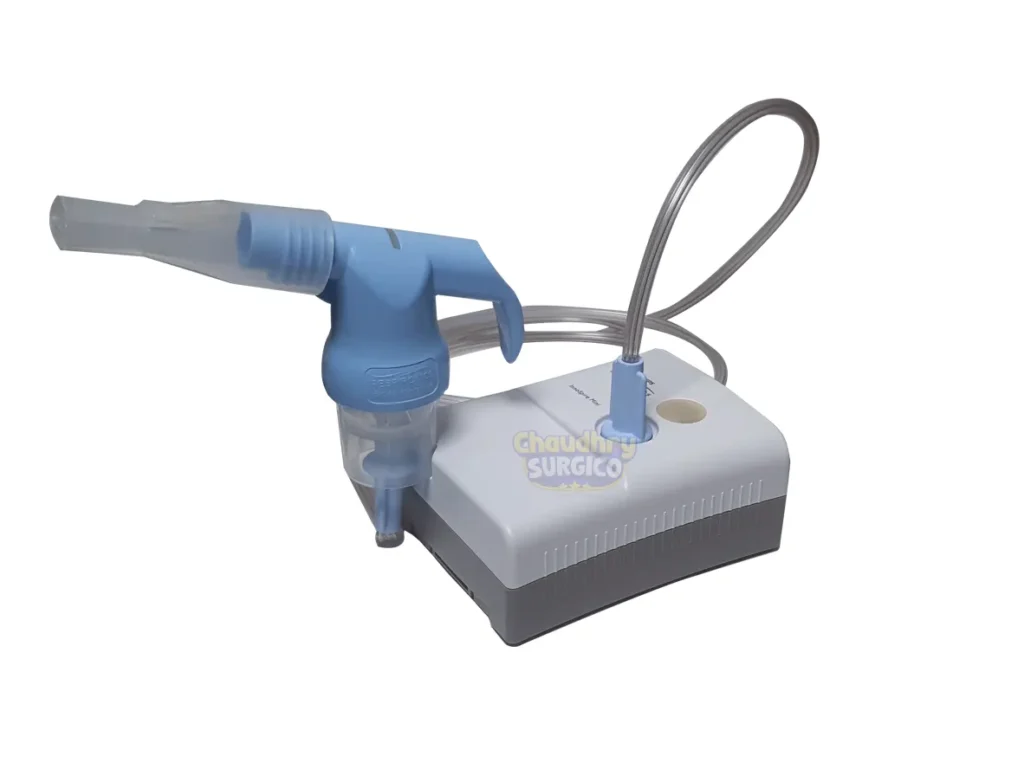

The Philips Innospire Mini is a portable and reliable compressor nebulizer designed for effective respiratory therapy for both children and adults. Small, lightweight, and quiet, it delivers fast treatment times with the included SideStream Plus nebulizer. Backed by a 3-year warranty, the Innospire Mini offers trusted aerosol delivery in a convenient package.
Featuring the SideStream Plus nebulizer for efficient aerosol delivery, the Portable Innospire Mini provides reliable performance you can trust. Backed by Philips’ quality, this portable nebulizer offers peace of mind and effective respiratory relief on the go.
Specifications of Philips Innospire Mini Nebulizer Machine
- Weight: 0.93 lbs.
- Size: 4.5″ x 3.5″ x 2.1″ (114.3 mm x 88.9 mm x 53.3 mm)
- Noise level: 50+/-4dBA
- Average flow rate: 3.4 LPM @127 psi
- Maximum pressure: 30 psi
- Maximum flow rate: -8 LPM
- Mode of operation: Intermittent use 30 min ON/30 min OFF
- Storage conditions Temperature: (MIN -20° C MAX +60° C)
Humidity: MIN 10% RH-MAX 95% RH
Atmospheric pressure: Performance may vary depending on altitude above sea level, barometric pressure and temperature - Operating conditions Temperature: (MIN +5° C MAX +40° C)
Humidity: MIN 10% RH -MAX 95% RH
Atmospheric pressure: Performance may vary depending on altitude above sea level, barometric pressure and temperature
The Package contains:
- Philips Nebulizer innospir mini
- Two Nebulizer Kits
- Air Filters
- Power Adopter
- Car Adopter
- Manual CD

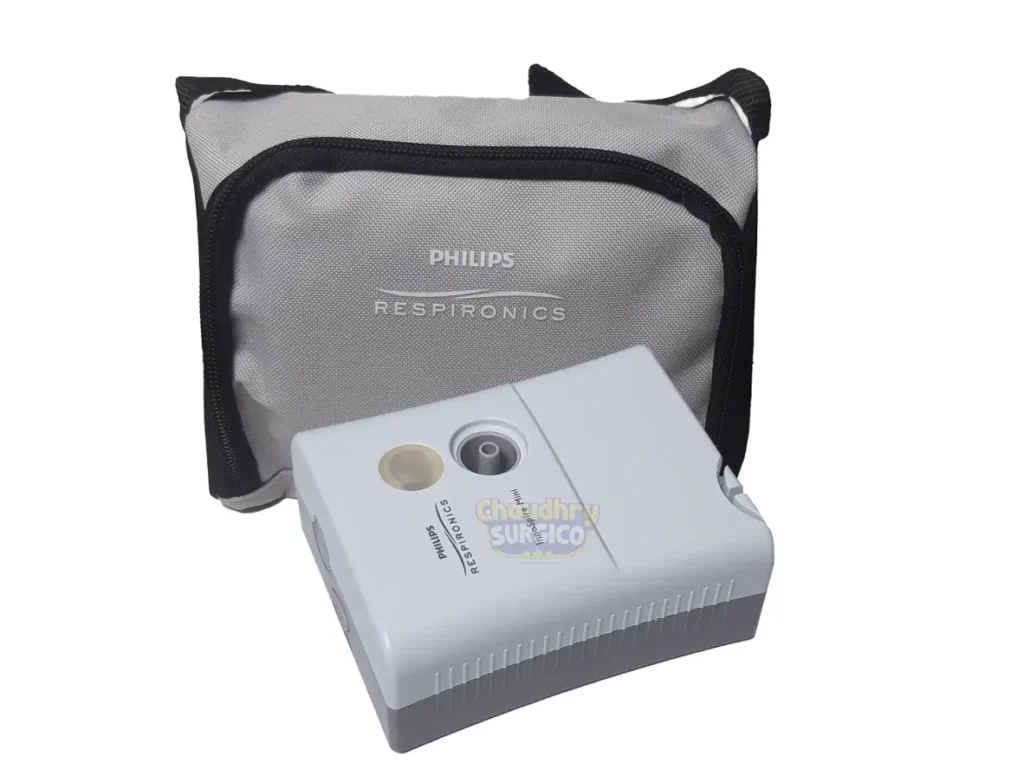

- Carrying Bag
Unboxing Video of Philips Nebulizer Machine Innospire Mini
Safety Precautions for Your Philips Innospire Mini Nebulizer:
- Supervision: Adult supervision is required when the device is used by, on, or near children, physically challenged individuals, or individuals with learning difficulties. Those requiring assistance may underestimate risks such as strangulation and should be closely monitored.
- Intended Use: Use this product only as described in the user manual. Using non-recommended nebulizers or accessories may compromise performance.
- Inspection: Never operate the device if it has a damaged cord or plug, is not working correctly, has been dropped or damaged, or has been exposed to water.
- Unattended Operation: Never leave the compressor unattended while plugged in.
- Operating Environment: Use the device in a clean, dust-free environment. Avoid use near flammable substances, in oxygen-rich environments, or in the presence of flammable anesthetic mixtures.
- Disposal: Dispose of the Innospire Mini and its parts according to local regulations.
- Power Source: Operate the compressor only with the specified power source.
- Extension Cords: Do not use with an extension cord.
- Power Cord: Keep the power cord away from heated surfaces.
- Disassembly: Do not remove the compressor housing or disassemble the unit. There are no serviceable parts inside.
- Immersion: Never submerge the Nebulizer machine in water or any other liquid.
- Carrying Case: Do not operate the compressor while it is inside the carrying case.
- Intermittent Use: This unit is designed for intermittent use: 30 minutes ON / 30 minutes OFF. Exceeding this may damage the device.
- Ventilator Use: Do not use this device in-line in a ventilator circuit.
- While Operating Vehicles or While Drowsy: Never use while sleeping, drowsy, or operating a vehicle.
- Stacking: Do not stack the Nebulizer machine with other equipment.
- Small Parts/Cords: Keep the device and its parts out of reach of small children and individuals who may be at risk of choking or strangulation. The cord length poses a potential strangulation hazard.
How to Use Your Philips Innospire Mini Nebulizer:
Follow these simple steps for effective respiratory treatment:
Preparation:
- Inspect for Damage: Before each use, carefully check the nebulizer machine and compressor for any signs of damage. Refer to the nebulizer’s separate instructions for specific details.
- Set Up Your Work Area: Place the Innospire Mini compressor on a firm, flat surface near a power outlet (if using AC power). Ensure you have a comfortable place to sit during treatment. Do not hold the compressor Nebulizer machine in your hand during operation.
- Power Connection:
- AC Power: Connect the AC adapter to the compressor’s power plug-in and then to a wall outlet.
- Car Adapter: If using the 12V DC car adapter, refer to the relevant sections in the user manual for specific instructions. Only use with a 12V vehicle electrical system.
- Filter Check: Never operate the unit without a filter or with a clogged (dirty) or wet filter. Using a dirty filter can impair performance and void the warranty.
- Hygiene: Wash your hands thoroughly before beginning your treatment.
Treatment Procedure:
- Assemble and Fill: Assemble your nebulizer machine and add the prescribed medication according to your doctor’s instructions and the nebulizer’s user manual.
- Connect Tubing: Connect one end of the tubing to the bottom of the nebulizer machine and the other end to the air outlet on the compressor.
- Start Treatment: Turn the power switch to begin your treatment. A green light will indicate that the unit is on.
- Complete Treatment: Once your treatment is finished, turn off the power switch. If using AC power or the car adapter, unplug the unit from the power source.
- Clean Nebulizer: Clean the nebulizer immediately after each use according to its instructions.
Cleaning and Maintaining Your Philips Innospire Mini Nebulizer:
Important Safety Precaution: To reduce the risk of electric shock, DO NOT disassemble the compressor or submerge it in water or any other liquid.
Cleaning the Compressor:
- Unplug the Unit: Always unplug the Nebulizer machine from the power source before cleaning.
- Wipe Down Exterior: Use a damp cloth to wipe down the outside of the compressor as needed. Do not use abrasive cleaners.
- Check Filter Regularly: Inspect the air filter periodically for dirt or debris. Replace the filter when it appears dirty.
Replacing the Air Filter:
- Remove Filter Holder: Use a coin to unscrew the filter holder. (Note: Turn clockwise to unscrew.)
- Replace Filter: Remove the old filter and replace it with a new, clean filter.
- Reattach Filter Holder: Screw the filter holder back on. (Turn counter-clockwise to tighten.)
Post-Cleaning Check:
After each cleaning and filter replacement, ensure the unit is functioning correctly:
- Airflow Check: Turn the unit on and verify that air is flowing from the nozzle.
- Noise Level Check: Listen for any increase in noise level. Increased noise may indicate improper filter positioning. Recheck the filter if necessary.
