Description

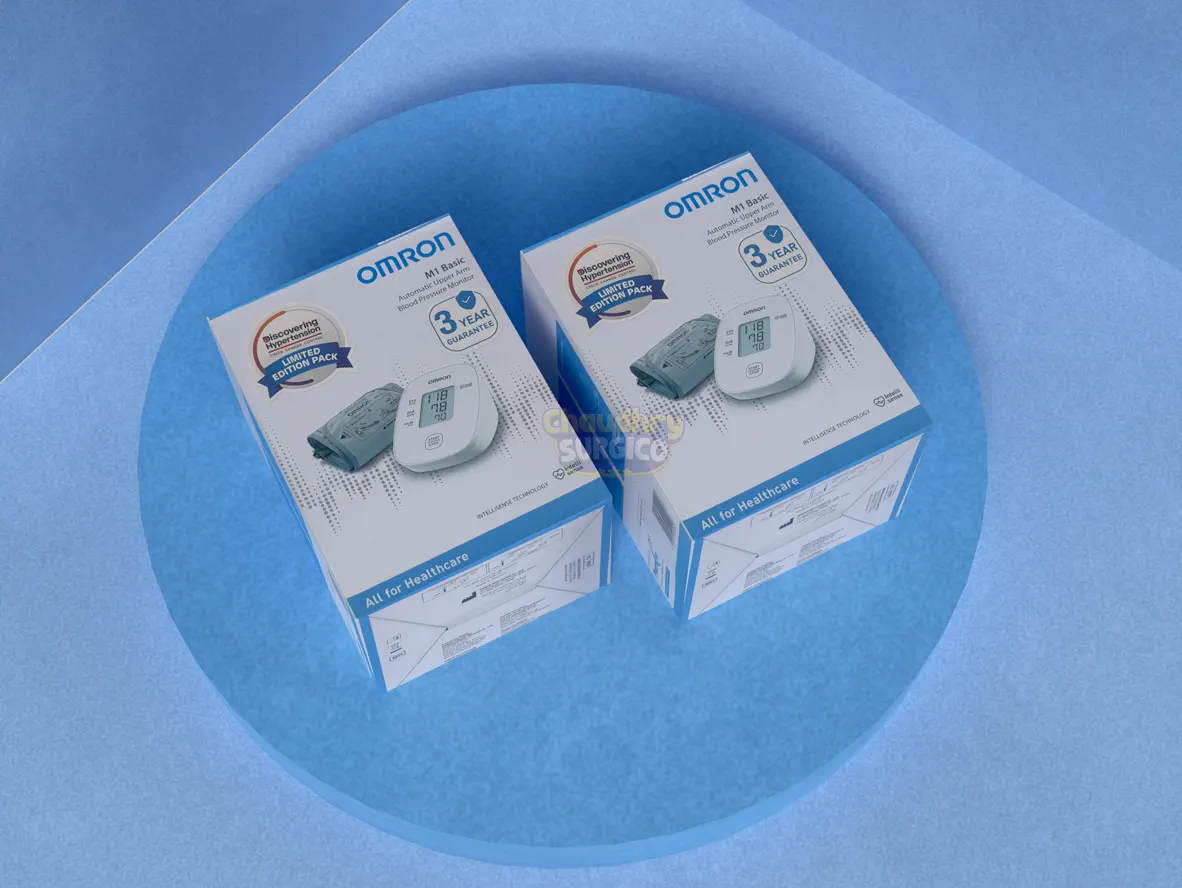

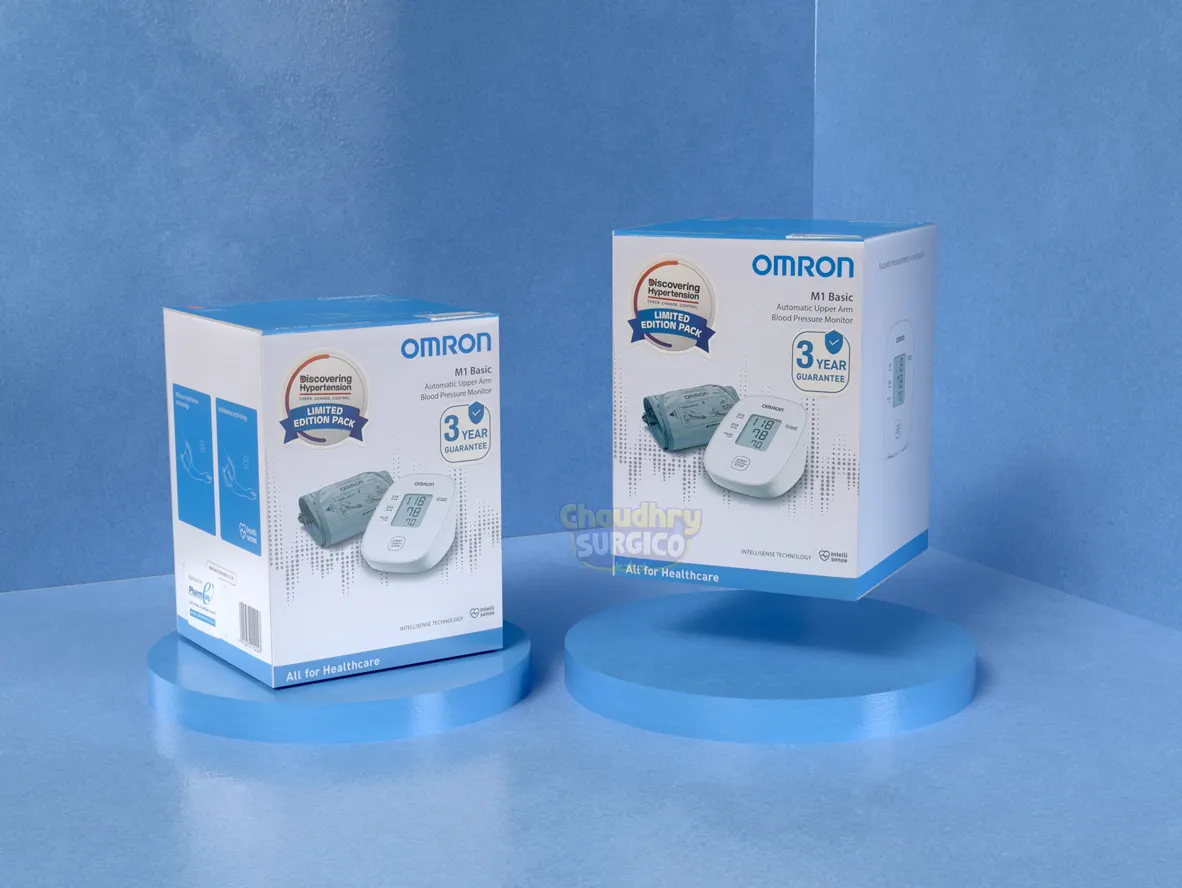

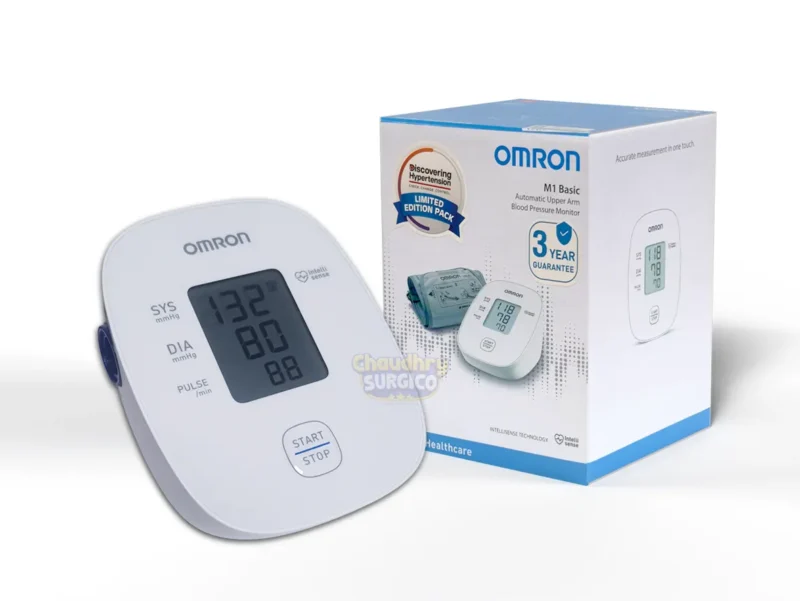

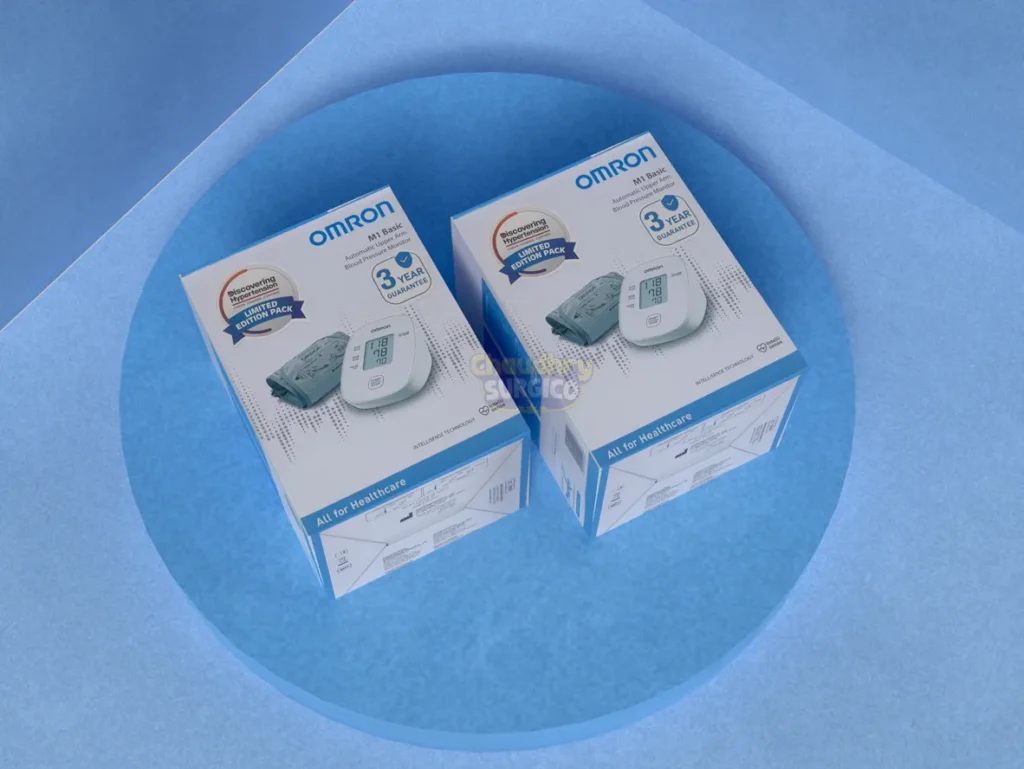

The Most Reliable Home Blood Pressure Monitor! OMRON Blood Pressure Monitor Digital Upper Arm M1 Basic
The OMRON Blood Pressure Monitor Digital Upper Arm M1 Basic is designed for easy and accurate blood pressure monitoring at home.
This monitor uses the oscillometric method to detect blood movement through your brachial artery and provides digital readings. Its simplified design makes it user-friendly, with one-touch operation and a clear LCD display. The monitor stores readings, allowing you to track your blood pressure over time.
Key features of OMRON M1 basic Digital Blood Pressure Monitor include hypertension indication, irregular heartbeat and movement detection, and a comfortable wide-range D-ring cuff. OMRON, the #1 doctor- and pharmacist-recommended brand, ensures accurate and reliable measurements. The monitor also includes a storage case for added convenience.
Key Features:
- Simplified Design: Easy one-touch operation.
- Intellisense Technology
- Hypertension Indicator: Alerts for high readings.
- Irregular Heartbeat and Movement Detection: Provides alerts.
- Simple Storage and Cuff Design: Comfortable and convenient.
- Reading Memory: Track your readings.
- Accurate Measurement: Oscillometric method.
360 Model View of OMRON Digital BP M1 Basic Model HEM-7121J-AF
Unboxing video of OMRON Digital BP M1 Basic
SPECIFICATIONS OF OMRON DIGITAL BP M1 BASIC
- Brand: OMRON
- Model: HEM-7121J-AF
- Display: LCD digital display
- Measurement Method: Oscillometric method
- Cuff Pressure Range: 0 to 299 mmHg
- Blood Pressure Measurement Range: 20 to 280 mmHg
- Pulse Measurement Range: 40 to 180 beats/min
- Accuracy: Pressure: ±3 mmHg / Pulse: ±5% of reading
- Power Source: 4 “AA” batteries or optional AC adapter
- Battery Life: Approximately 1000 measurements
- Cuff Size: Fits adult upper arms 9” to 13” inches (22-32 cm) circumference.
- Storage Memory: 14 readings
- Weight: Monitor: approx. 250g / Cuff: approx. 130g
- Dimensions: Monitor: 108mm (W) x 83mm (H) x 140mm (L) / Cuff: 145mm x 466mm
TOP 5 MOST ASKED QUESTIONS
What is the price of the OMRON Blood Pressure Monitor Digital Upper Arm M1 Basic?
the price of the OMRON Blood Pressure Monitor Digital Upper Arm M1 Basic is Rs. 9500.
How many readings does it store?
It shows last previous saved record.
Does it detect irregular heartbeats?
Yes, it does.
What is the cuff size?
Fits arms 9" to 13" inches (22-32cm) circumference.
Can I use an AC adapter with it?
Yes, an optional AC adapter is available. (not included in the package)
Error Messages and Troubleshooting:
| Display/Problem | Possible Cause (inches) | Solution |
|---|---|---|
| E1 | The [START/STOP] button was pressed while the arm cuff is not applied. arm cuff does not inflate. Air plug is not completely plugged into the monitor. The arm cuff is not applied correctly. Air is leaking from the arm cuff. appears or a measurement cannot be completed after the arm cuff inflates. | Press the [START/STOP] button again to turn the monitor off. After inserting the air plug securely and applying the arm cuff correctly, press the [START/STOP] button. Insert the air plug securely. Apply the arm cuff correctly, then take another measurement. Refer to section 4 of instruction manual 2. Replace the arm cuff to the new one. Refer to section 9 of instruction manual 2. |
| E2 | You move or talk during a measurement and the arm cuff does not inflate sufficiently. Due to the systolic pressure is above 210 mmHg, a measurement cannot be taken. | Remain still and do not talk during a measurement. If "E2" appears repeatedly, inflate the arm cuff manually until the systolic pressure is 30 to 40 mmHg above your previous readings. Refer to section 6 of instruction manual 2. |
| E3 | The arm cuff is inflated exceeding the maximum allowable pressure. You move or talk during a measurement. Vibrations disrupt a measurement. | Do not touch the arm cuff and/or bend the air tube while taking a measurement. If inflating the arm cuff manually, refer to section 6 of instruction manual 2. |
| E4 | The pulse rate is not detected correctly. | Remain still and do not talk during a measurement. |
| E5 | does not flash during a measurement . | Apply the arm cuff correctly, then take another measurement. Refer to section 4 of instruction manual 2. Remain still and sit correctly during a measurement. |
| Err | The monitor has malfunctioned. | Press the [START/STOP] button again. If "Er" still appears, contact your OMRON retail outlet or distributor. |
| Low Battery /Indicator | the monitor is turned off unexpectedly during a measurement | Replacing all 4 batteries with new ones is recommended. Refer to section 3 of instruction manual 2. |
